Product Description:
|
Frame
|
Alloy frame
|
Battery
|
Xianzhong,36V10.4AH (LG2600 batteries) battery pack
|
|
Fork
|
Zoom,disc brake, black fork shoulder
|
Instrument
|
KD-21C LCD 36V cable length 0.2m,provides waterproof cable
|
|
Head tube assembly
|
Neco,semi-sealed hidden ten pieces,with bell mouth gasket
|
Charger
|
42V2A British standard charger, wide voltage AC100V-240V DC head 2.1 output port
|
|
Fork Washer
|
Neco,28.6*10mm. *2.0 T Aluminum
|
Controller
|
LSW-1140-1 36V water bottle built-in waterproof cable
|
|
Rear derailleur
|
Shimano,ARDM360SGSL,REAR DERAILLEUR, RD-M360-L, ACERA, SGS 7/8-SPEED, DIRECT ATTACHMENT, BLACK, BULK
|
Sensor
|
KD-SS speed sensor, our company provides waterproof cable
|
|
Chain
|
KMC,C70 1/2*3/32*112L
|
Front light (light film)
|
V brake front light frame, with HDP11 white reflector
|
|

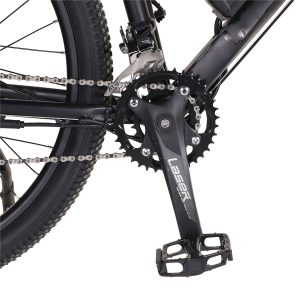

Chainwheel
|
1# aluminum left and right crank,AL6061 170mm, left crank, tap left tooth tap right tooth, laser engraving “L”/”R” aluminum
|
Rear lights (lights)
|
HDKL saddle stand Φ30.4, with HDP11 red reflector
|
|
Pedal
|
Yonghua, all-aluminum pedals, ordinary reflectors, 9/16″ shaft with beads,Aluminum
|
Motor
|
BWAC-S, 36V 44T 250W full set of waterproof plug-ins.
|
|
Seatpost
|
Zoom,SP-C208 ∮30.4*300mm with chuck, with safety thread,aluminum
|
Front hub
|
Kuando,KT-68F, M9*100*108, 14G*36H, six-hole disc brake, with aluminum quick release effective distance 115mm aluminum
|
|

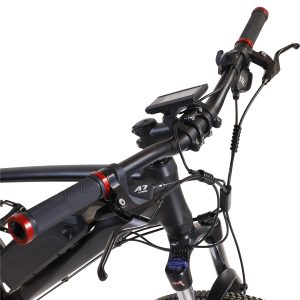

Handlebar
|
Zoom,MTB-AL-118FOV, 22.2*600MM, 31.8MM expansion drum. Grip distance 185MM,aluminum
|
Rear hub
|
Kuando,KT-68R, M10*135*145, 14G*36H, six-hole disc brake, 8-speed card, with aluminum quick release effective distance 151mm
aluminum |
|
Stand pipe
|
Zoom, TDS-419A-8FOV, handlebar extension: 90MM, and the horizontal diameter of the handlebar ∮31.8 ,aluminum
|
Tire
|
Kenda,K1047 26″*1.95
|
|
Rear shift lever
|
Shimano, ASLM310R8AC,SHIFT LEVER, SL-M310, RIGHT 8-SPEED 2050MM INNER, W/ OPTICAL GEAR DISPLAY, FOR CHINA DOMESTIC, BULK
|
Inner tube
|
Wanda,26″*1.95,48mm A/V
|
|

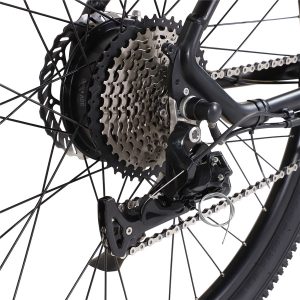

Flywheel
|
Shimano,ACSHG318132,CASSETTE SPROCKET, CS-HG31, 8-SPEED, 11-13-15-18-21-24-28-32T(AW), BULK
|
Electric bicycle refers to a mechatronics personal vehicle that uses storage batteries as auxiliary energy sources on the basis of ordinary bicycles, and is equipped with motor, controller, storage battery, handlebars and other operating components and display instrument system.
Shopping common sense
- Choose a brand. Pay attention to choosing well-known brands, quality and after-sale service are guaranteed.
- Pick a car model. The safety and performance of different models vary greatly. It is recommended to choose a simple and portable type.
- Look at the appearance. Pay attention to the surface smoothness and gloss, and pay attention to the quality of welding, painting and electroplating.
- Find feelings. Carry out a trial ride, feel whether the vehicle is starting, accelerating, and driving smoothly, whether the vehicle is comfortable to handle, and check the brake tightness, handlebar flexibility, and wheel mobility.
- Check the procedures. Check whether the production license, instruction manual, and qualification certificate are valid and complete, and check whether the accessories provided with the vehicle are complete. Pay special attention to whether it is a locally approved vehicle.
- Look at the configuration. Whether related important components, such as batteries, motors, chargers, controllers, tires, brake levers, etc., are branded products. The motor is best to choose brushless.
Vehicle maintenance
Pay attention to cleaning first. After encountering water, especially salt water in winter (many cities spray salt water after heavy snow in winter to avoid freezing), clean it in time, otherwise it will easily cause metal parts to rust and paint film aging and fall off. The second is to pay attention to the maximum adjustment height. After the new car has been riding for a period of time, the whole car should be inspected and adjusted according to the requirements of the manual. At this time, tightening and lubrication are essential. Check whether the fasteners are loose and whether the transmission parts are flexible. Pay attention to wipe off the slick oil after lubricating the chain, and just apply a little oil on the flywheel. The tires should be properly inflated, otherwise it will affect the comfort and service life of riding. The brakes are the basic guarantee for safety, and they should be checked at any time. Any problems should be adjusted or repaired immediately.
